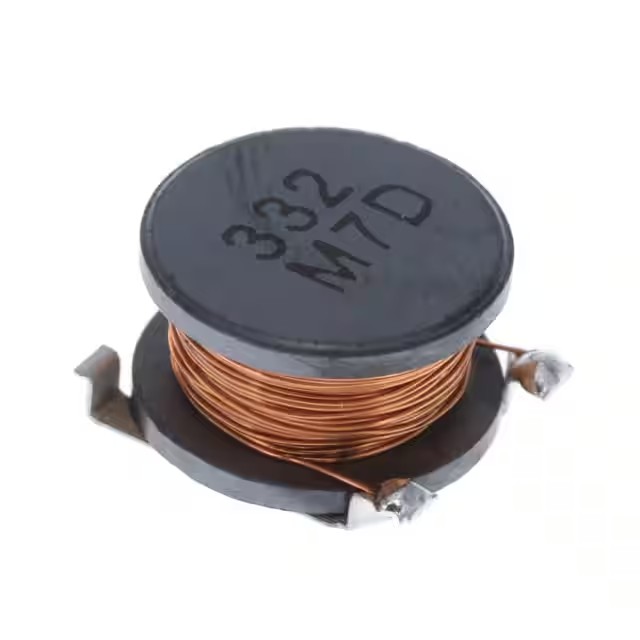

| Part Number | CDH80D48NP-332KC | CDH80D48NP-331KC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 mH | 330 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 160 mA | 570 mA |
| Current - Saturation (Isat) | 180mA | 580mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 11.2Ohm Max | 1Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.331" L x 0.315" W (8.40mm x 8.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
