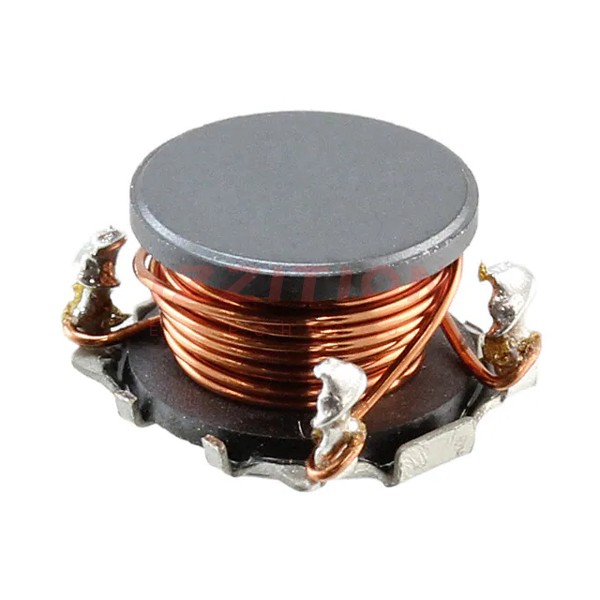

| Part Number | CDH74NP-121JC | CDH74NP-151JC | CDH74NP-181JC | CDH74NP-221JC | CDH74NP-101JC |
|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 150 µH | 180 µH | 220 µH | 100 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 730 mA | 710 mA | 660 mA | 550 mA | 810 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 620mOhm Max | 720mOhm Max | 820mOhm Max | 1.08Ohm Max | 550mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.315" L x 0.287" W (8.00mm x 7.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
