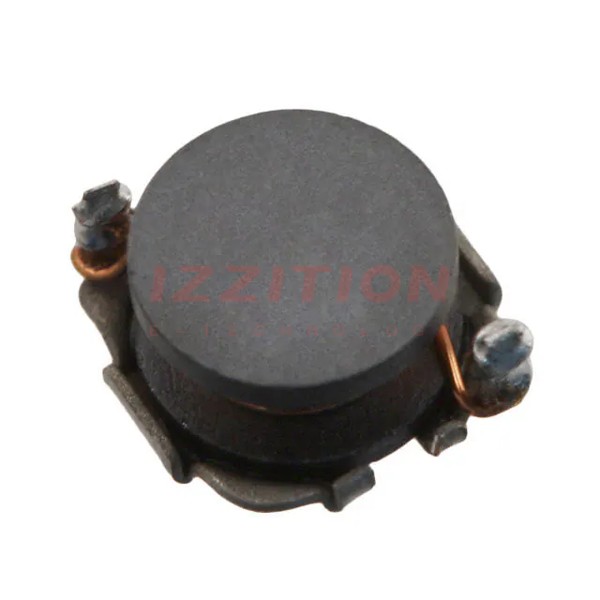

| Part Number | CDH53NP-390KC | CDH53NP-330KC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 39 µH | 33 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 640 mA | 670 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 550mOhm Max | 490mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) |
