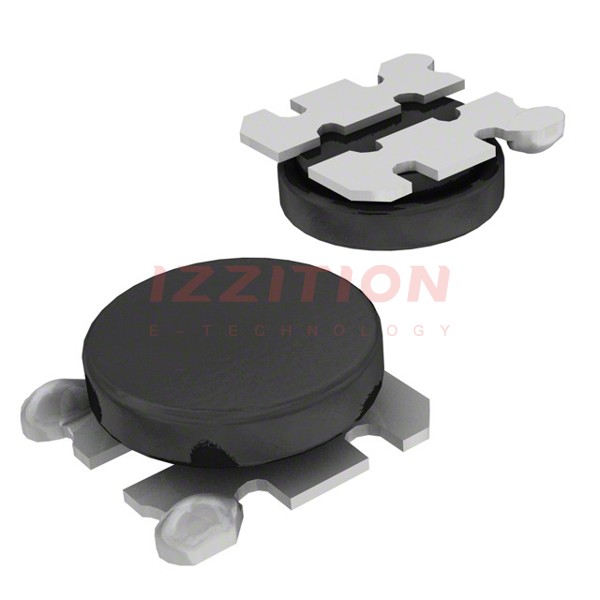

| Part Number | CDH2D09SNP-100MC | CDH2D09BNP-100MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 360 mA | 470 mA |
| Current - Saturation (Isat) | 280mA | 480mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 830mOhm | 588mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.112" L x 0.106" W (2.85mm x 2.70mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
