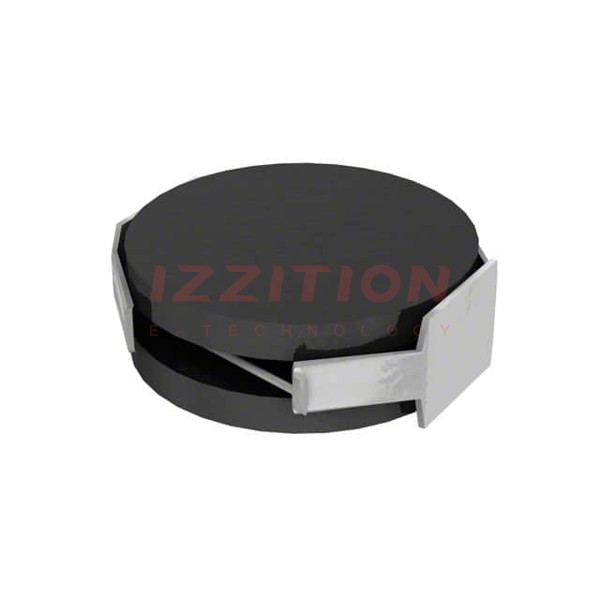

| Part Number | CDH2D09BNP-2R4MC | CDH2D09BNP-6R4MC | CDH2D09SNP-2R4MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Obsolete |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.4 µH | 6.4 µH | 2.4 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.18 A | 640 mA | 780 mA |
| Current - Saturation (Isat) | 1A | 600mA | 560mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 160mOhm Max | 400mOhm Max | 195mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.112" L x 0.106" W (2.85mm x 2.70mm) | 0.112" L x 0.106" W (2.85mm x 2.70mm) | 0.094" L x 0.094" W (2.40mm x 2.40mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
