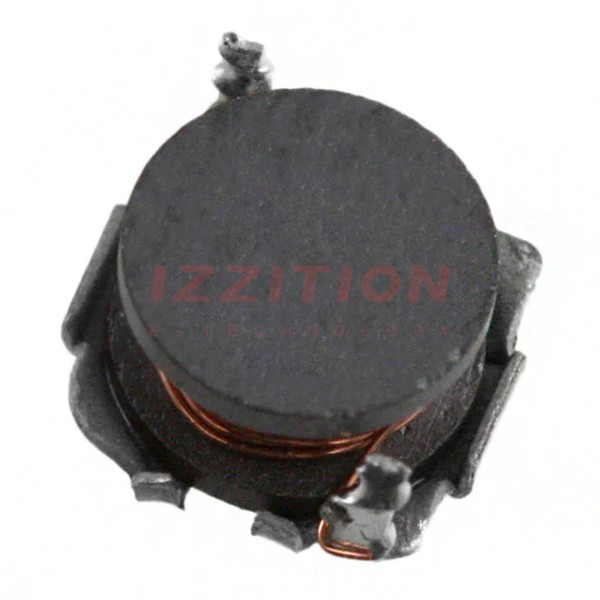

| Part Number | CDH115NP-121KC | CDH115NP-151KC | CDH115NP-181KC | CDH115NP-221KC | CDH115NP-101KC |
|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 150 µH | 180 µH | 220 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 880 mA | 760 mA | 720 mA | 660 mA | 960 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 290mOhm Max | 400mOhm Max | 450mOhm Max | 530mOhm Max | 260mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.441" L x 0.433" W (11.20mm x 11.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
