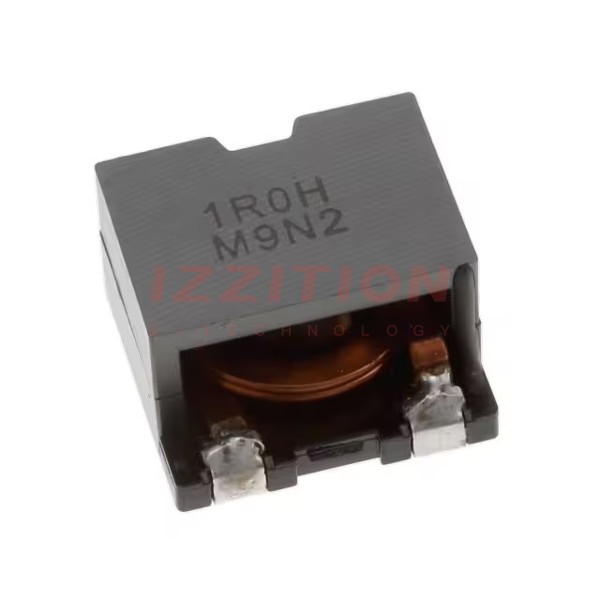

| Part Number | CDEP15D90T150NP-1R0MC-100 | CDEP15D90T150NP-100MC-100 |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 24.5 A | 12.2 A |
| Current - Saturation (Isat) | 51.6A | 16.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.75mOhm | 8.9mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.610" L x 0.610" W (15.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
