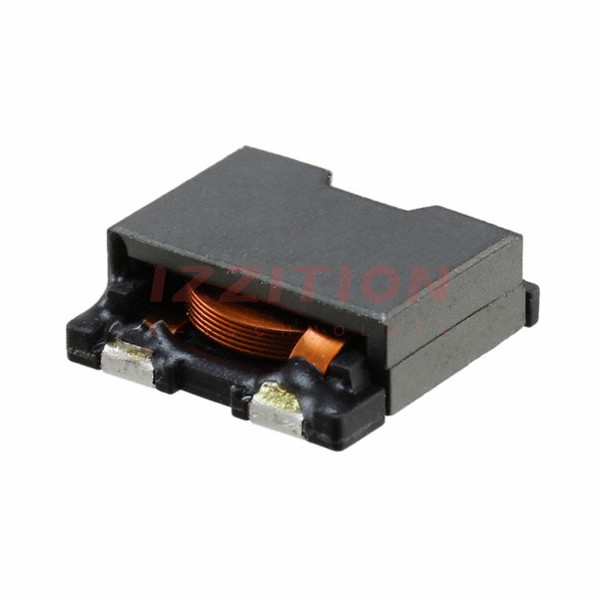

| Part Number | CDEP134NP-3R6MC | CDEP134NP-1R6MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.6 µH | 1.6 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 8 A | 15 A |
| Current - Saturation (Isat) | 10.9A | 16A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 10.8mOhm Max | 3.7mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
