CDEP134-4R8MC
  • Share:

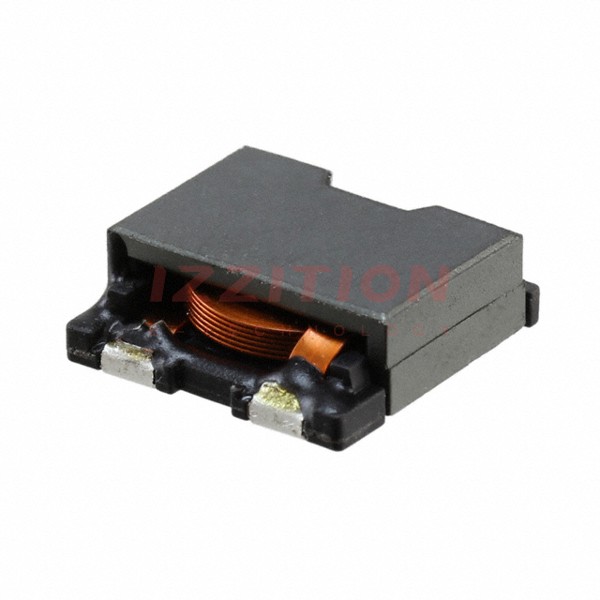

Sumida America Components Inc. CDEP134-4R8MC

Manufacturer No:
CDEP134-4R8MC
Manufacturer:
Sumida America Components Inc.
Package:
Tape & Reel (TR)
Datasheet:
CDEP134-4R8MC Datasheet
ECAD Model:
-
Description:
FIXED IND 4.8UH 7.5A 12 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:4.8 µH
Tolerance:±20%
Current Rating (Amps):7.5 A
Current - Saturation (Isat):9.3A
Shielding:Shielded
DC Resistance (DCR):12mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max):0.197" (5.00mm)
0 Remaining View Similar

In Stock

-
61

Please send RFQ , we will respond immediately.
