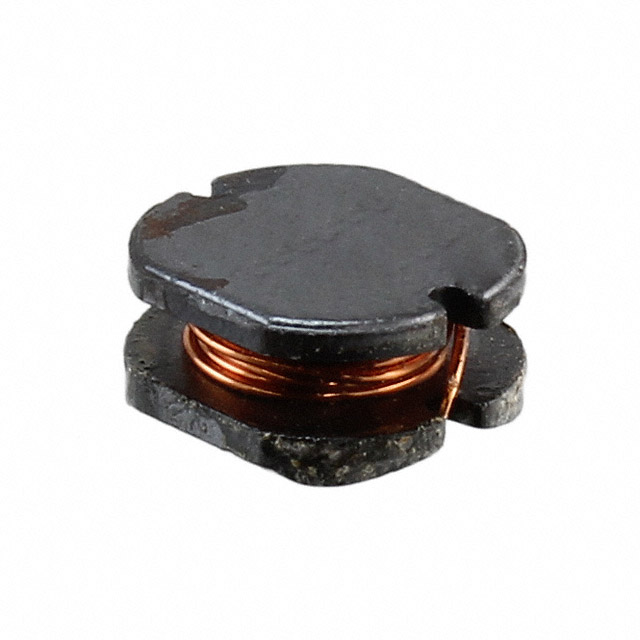

| Part Number | CD73NP-470MC | CD73NP-270MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 47 µH | 27 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 680 mA | 940 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 252mOhm Max | 153mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
