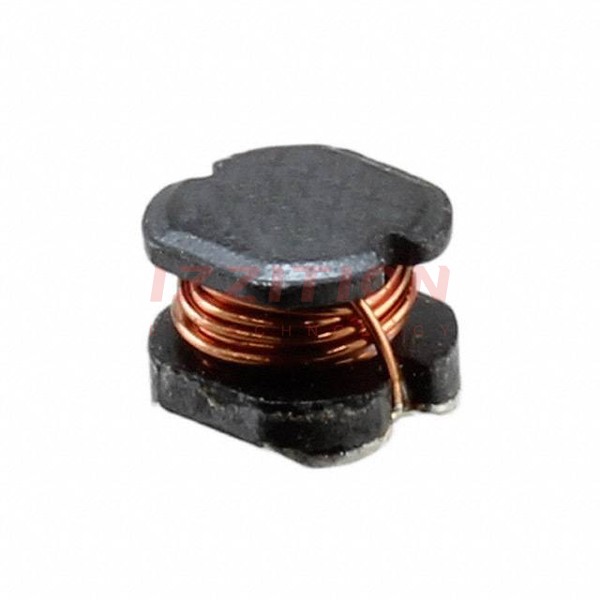

| Part Number | CD43NP-1R0MC | CD43NP-1R4MC | CD43NP-1R8MC | CD43NP-100MC | CD43NP-120MC | CD43NP-150MC | CD43NP-180MC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.4 µH | 1.8 µH | 10 µH | 12 µH | 15 µH | 18 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.7 A | 2.5 A | 2.33 A | 1.04 A | 970 mA | 850 mA | 740 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 48.7mOhm Max | 56.2mOhm Max | 63.7mOhm Max | 182mOhm Max | 210mOhm Max | 235mOhm Max | 338mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
