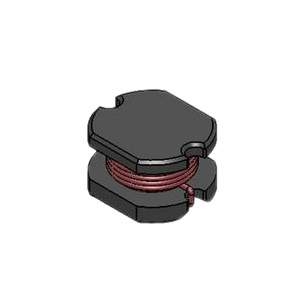

| Part Number | CD30D22HF-680MC | CD30D22HF-180MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 18 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 370 mA | 700 mA |
| Current - Saturation (Isat) | 410mA | 800mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.82Ohm Max | 507mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) |
