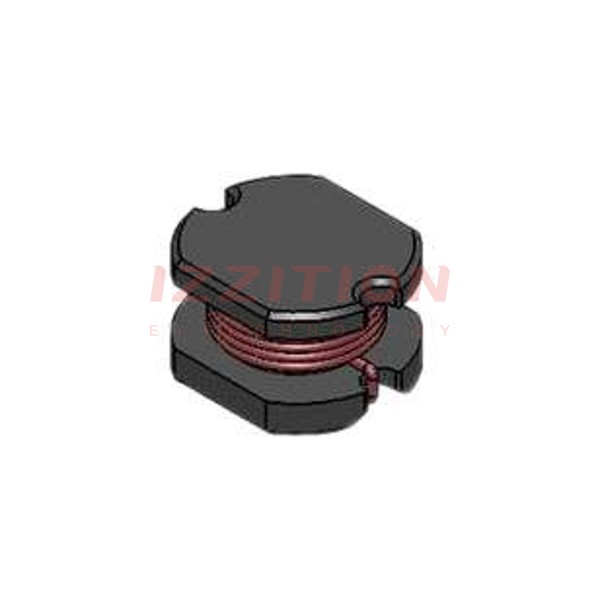

| Part Number | CD30D22HF-150MC | CD30D22HF-1R0MC | CD30D22HF-180MC | CD30D22HF-151MC | CD30D22HF-100MC | CD30D22HF-120MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 18 µH | 150 µH | 10 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 830 mA | 3.46 A | 700 mA | 220 mA | 950 mA | 910 mA |
| Current - Saturation (Isat) | 830mA | 3.36A | 800mA | 260mA | 1.02A | 960mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 388mOhm Max | 35.9mOhm Max | 507mOhm Max | 4.62Ohm Max | 313mOhm Max | 338mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.138" L x 0.118" W (3.50mm x 3.00mm) |
| Height - Seated (Max) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
