Please send RFQ , we will respond immediately.

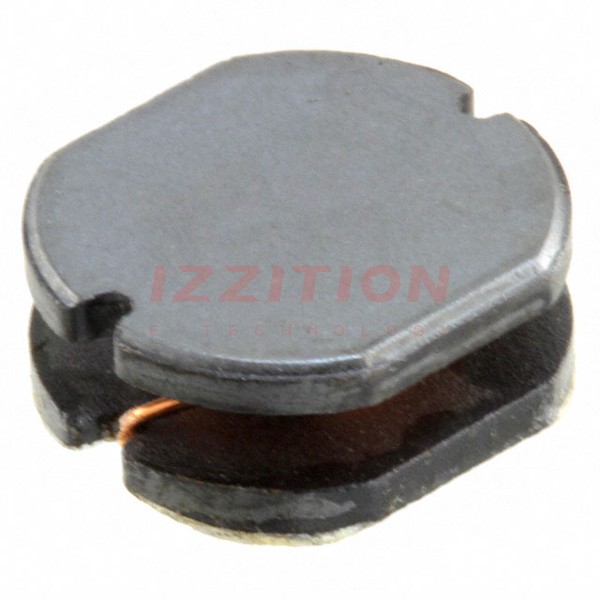

| Part Number | CD104NP-470MC | CD104NP-270MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 47 µH | 27 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.1 A | 1.44 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 170mOhm Max | 100mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 13.8MHz | 18.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) | 0.177" (4.50mm) |
