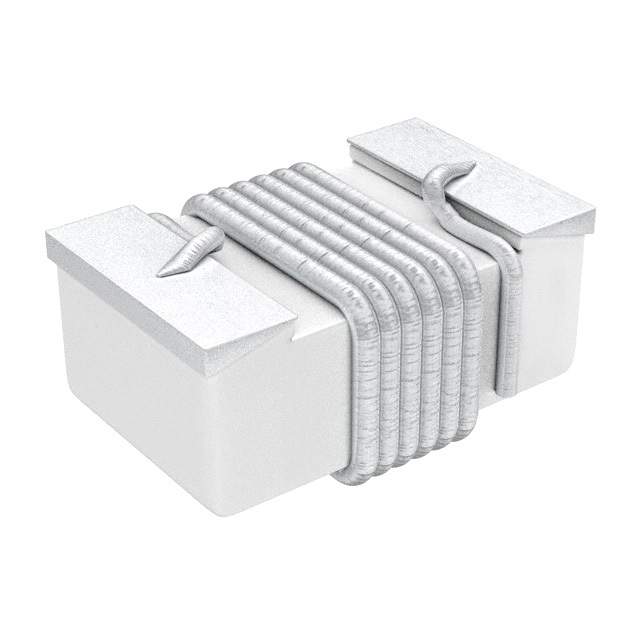

| Part Number | 5508 080 34 00 | 5508 020 34 00 |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ceramic | Ceramic |
| Inductance | 8.2 nH | 2.7 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 700 mA | 1 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 30mOhm Max |
| Q @ Freq | 35 @ 250MHz | 20 @ 250MHz |
| Frequency - Self Resonant | 5GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz | 250 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Height - Seated (Max) | 0.056" (1.42mm) | 0.056" (1.42mm) |
