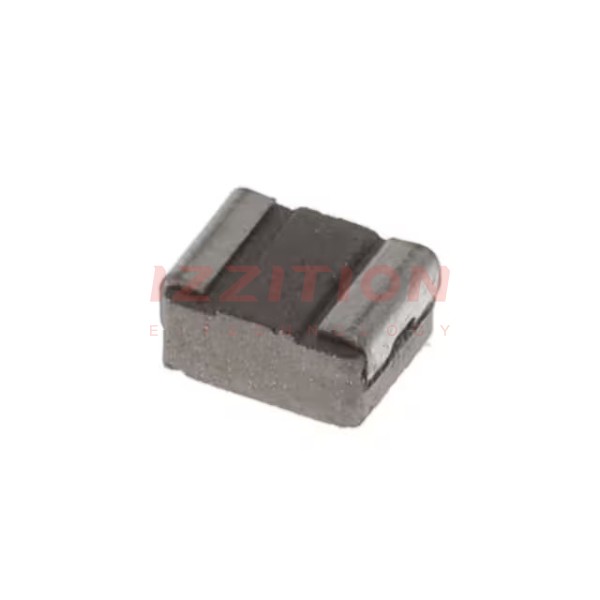

| Part Number | 252012CDMCCDS-3R3MC | 252012CDMCDS-3R3MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Discontinued at Digi-Key | Obsolete |
| Type | Molded | Wirewound |
| Material - Core | Metal | - |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Current - Saturation (Isat) | 1.9A | 2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 222mOhm Max | 105mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
