Please send RFQ , we will respond immediately.

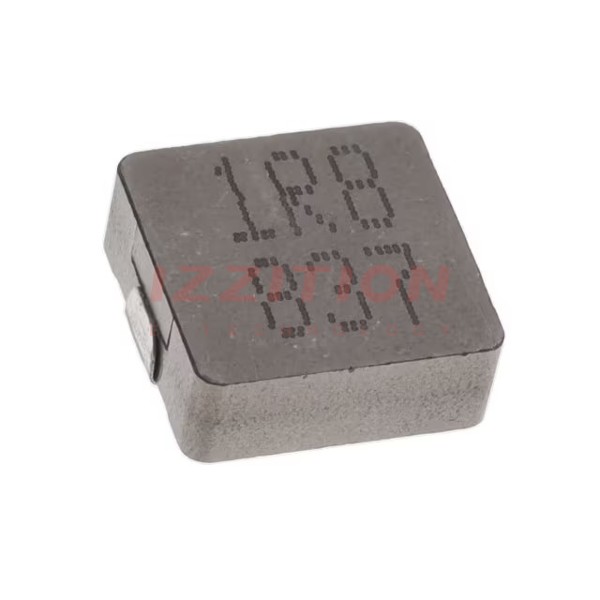

| Part Number | 125CDMCCDS-1R8MC | 125CDMCCDS-6R8MC | 125CDMCCDS-1R0MC | 125CDMCCDS-1R5MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 1.8 µH | 6.8 µH | 1 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 21 A | 11 A | 28 A | 22 A |
| Current - Saturation (Isat) | 35A | 17A | 47A | 38A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.5mOhm Max | 18mOhm Max | 1.9mOhm Max | 3.3mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | SMD | SMD | SMD |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
