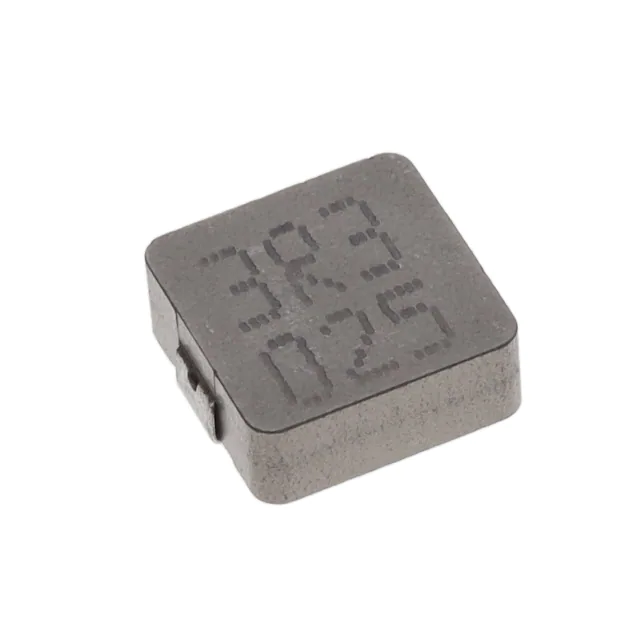

| Part Number | 104CDMCCDS-3R3MC | 104CDMCDDS-3R3MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | Metal | Metal |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 11.8 A |
| Current - Saturation (Isat) | 18A | 19A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 12mOhm Max | 13mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
