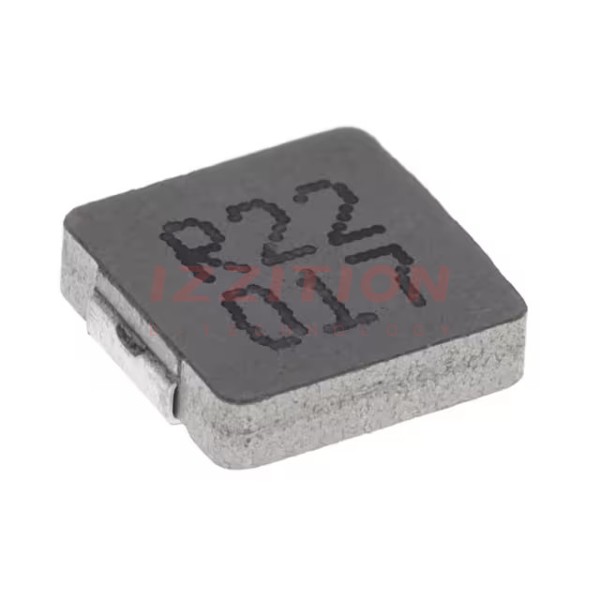

| Part Number | 0618CDMCCDS-R22MC | 0618CDMCCDS-R12MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | Metal | Metal |
| Inductance | 220 nH | 120 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 18 A | 25 A |
| Current - Saturation (Isat) | 23A | 30A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 3.6mOhm Max | 2.4mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
