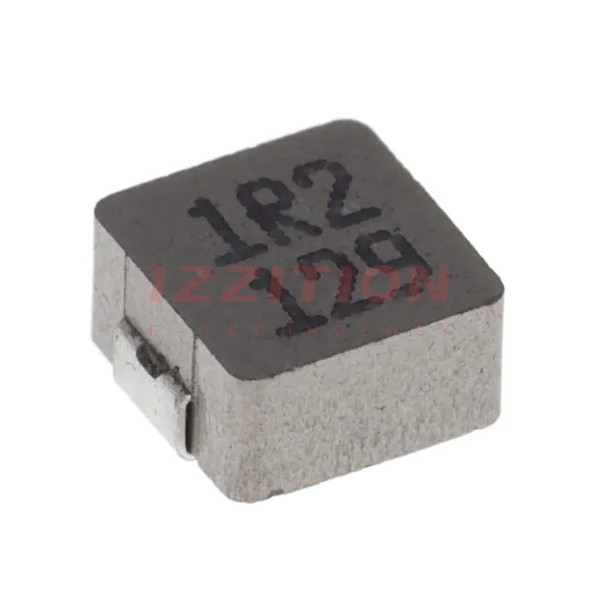

| Part Number | 0530CDMCCDS-1R2MC | 0530CDMCCDS-2R2MC | 0530CDMCCDS-1R5MC | 0530CDMCCDS-1R0MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 1.2 µH | 2.2 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 8.7 A | 5.8 A | 7.2 A | 9.4 A |
| Current - Saturation (Isat) | 13.5A | 9A | 13A | 12A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 16mOhm Max | 29mOhm Max | 25mOhm Max | 14mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | SMD | SMD | SMD |
| Size / Dimension | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
