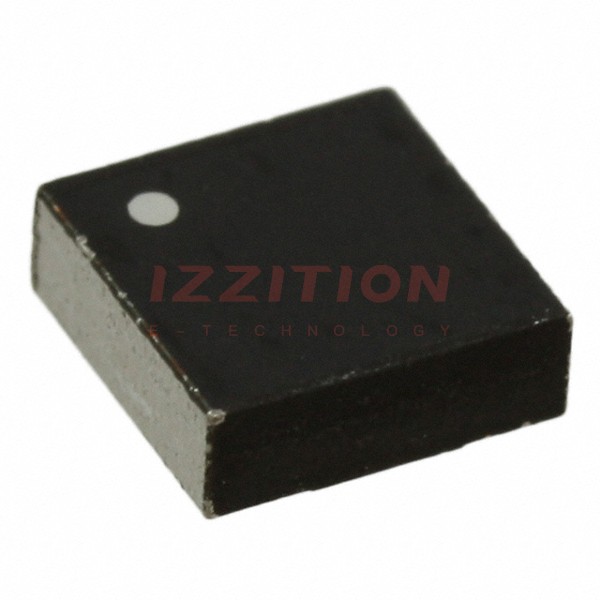

| Part Number | 0520CDMCDS-150MC | 0520CDMCDS-1R0MC | 0520CDMCDS-100MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 5.9 A | 1.9 A |
| Current - Saturation (Isat) | 2.5A | 8A | 3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 185mOhm | 17mOhm | 135mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
