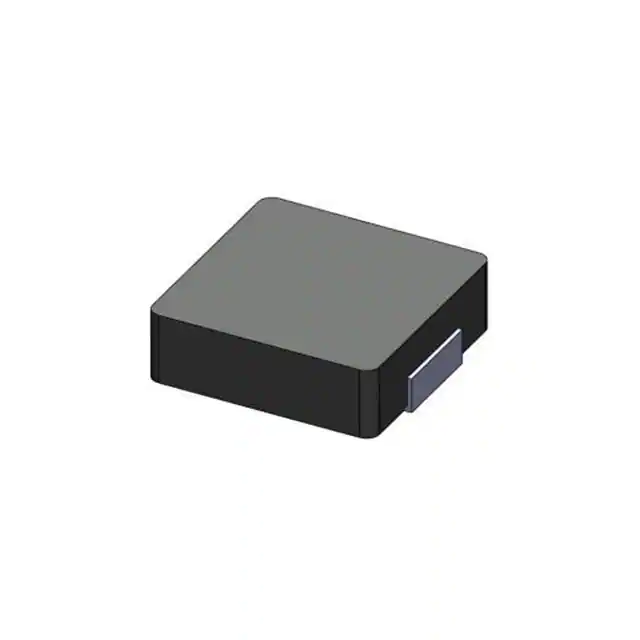

| Part Number | 0518CDMCCDS-100MC | 0518CDMCCDS-1R0MC | 0518CDMCCDS-150MC |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | Metal | Metal | Metal |
| Inductance | 10 µH | 1 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.3 A | 7.5 A | 1.8 A |
| Current - Saturation (Isat) | 3.5A | 13.1A | 1.7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 155mOhm Max | 17mOhm Max | 260mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | SMD | SMD |
| Size / Dimension | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
