Please send RFQ , we will respond immediately.

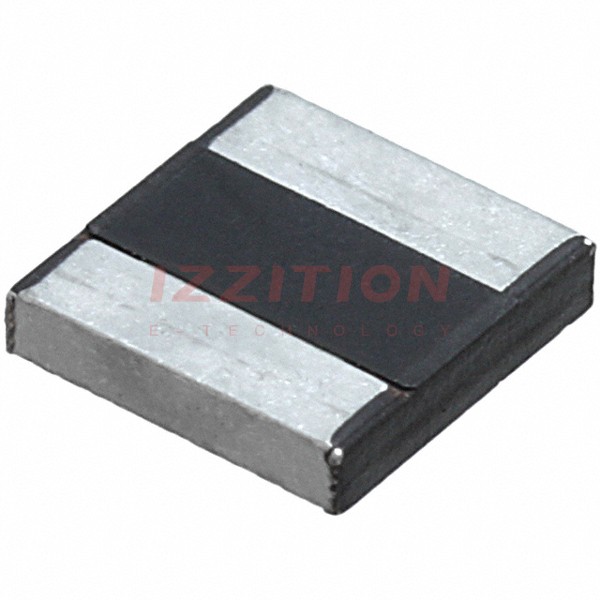

| Part Number | 0512CDMCDS-1R0MC | 0512CDMCDS-1R5MC | 0412CDMCDS-1R0MC | 0512CDMCCDS-1R0MC | 0512CDMCDS-100MC | 0512CDMCDS-150MC |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Molded | Wirewound | Wirewound |
| Material - Core | - | - | - | Metal | - | - |
| Inductance | 1 µH | 1.5 µH | 1 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.6 A | 2.5 A | 2.8 A | 5.7 A | 1.1 A | 900 mA |
| Current - Saturation (Isat) | 6.1A | 5.9A | 6.2A | 6.5A | 2.5A | 2.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 30mOhm | 48mOhm | 40mOhm | 31.8mOhm Max | 290mOhm | 400mOhm |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | SMD | - | - |
| Size / Dimension | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
