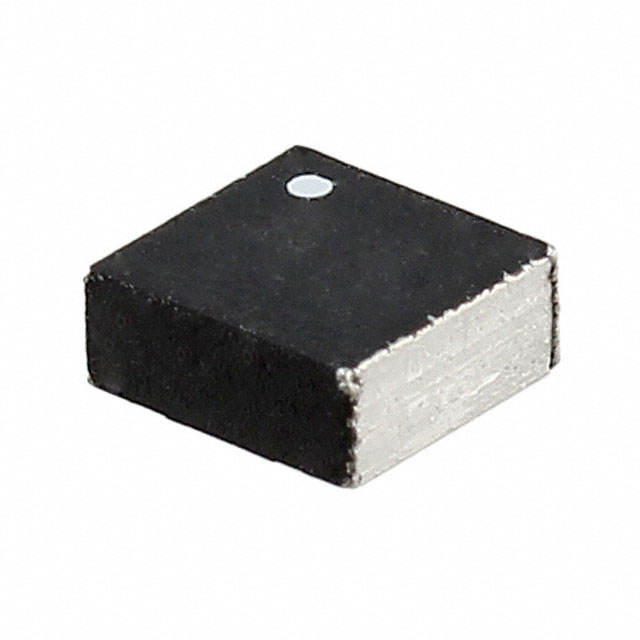

| Part Number | 0420CDMCDS-R33MC | 0520CDMCDS-R33MC | 0420CDMCBDS-R33MC | 0420CDMCCDS-R33MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Type | Wirewound | Wirewound | Wirewound | Molded |
| Material - Core | - | - | - | Metal |
| Inductance | 330 nH | 330 nH | 330 nH | 330 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 8.9 A | 7.9 A | 8.9 A | 10.5 A |
| Current - Saturation (Isat) | 12.6A | 14A | 12.6A | 12A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 6mOhm | 8mOhm | 6mOhm | 10.5mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1816 (4540 Metric) | Nonstandard | 2-SMD | Nonstandard |
| Supplier Device Package | - | - | SMD | SMD |
| Size / Dimension | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
