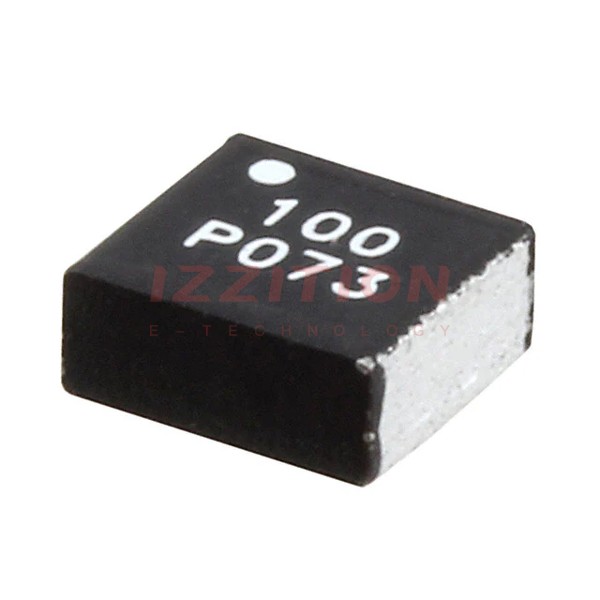

| Part Number | 0420CDMCBDS-4R7MC | 0420CDMCCDS-4R7MC | 0420CDMCDS-4R7MC | 0410CDMCBDS-4R7MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Wirewound | Molded | Wirewound | Wirewound |
| Material - Core | - | Metal | - | - |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.9 A | 2.7 A | 3.1 A | 1.6 A |
| Current - Saturation (Isat) | 3.4A | 3A | 3.4A | 1.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 67mOhm | 105mOhm Max | 67mOhm | 218mOhm |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -55°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | Nonstandard | 1816 (4540 Metric) | 2-SMD |
| Supplier Device Package | SMD | SMD | - | SMD |
| Size / Dimension | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.047" (1.20mm) |
