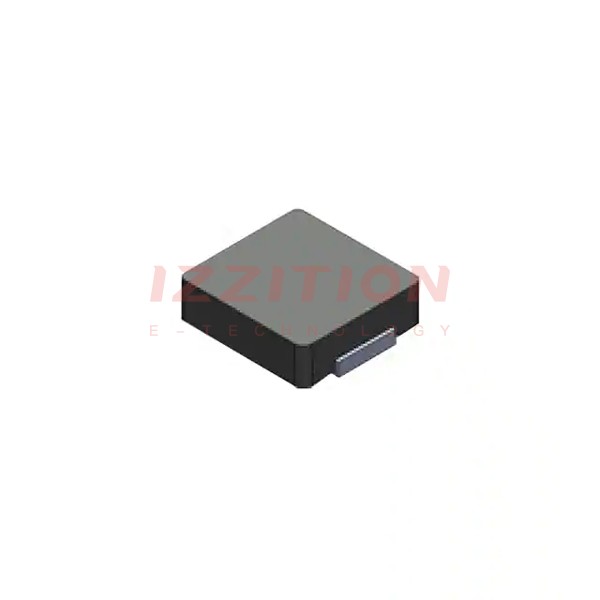

| Part Number | 0415CDMCCDS-4R7MC | 0410CDMCCDS-4R7MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | Metal | Metal |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2.6 A | 1.75 A |
| Current - Saturation (Isat) | 3A | 1.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 130mOhm Max | 243mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | SMD |
| Size / Dimension | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.039" (1.00mm) |
