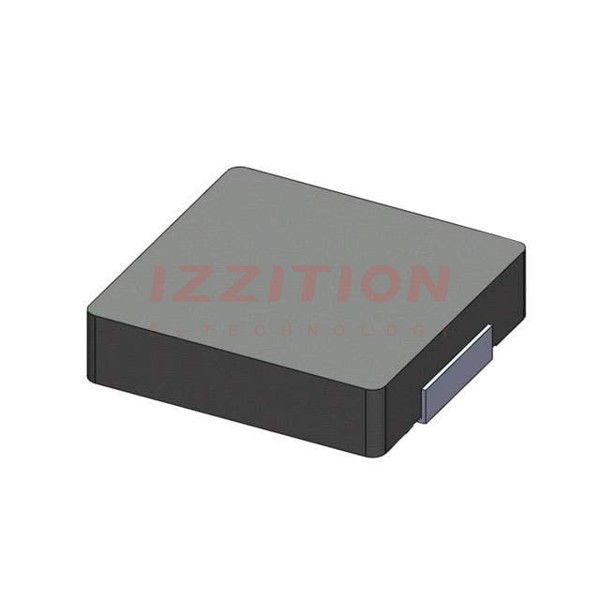

| Part Number | 0410CDMCCDS-R15MC | 0410CDMCCDS-R10MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | Metal | Metal |
| Inductance | 150 nH | 100 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 14 A |
| Current - Saturation (Isat) | 13.1A | 14A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.3mOhm Max | 5.8mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | SMD | SMD |
| Size / Dimension | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) |
