Please send RFQ , we will respond immediately.

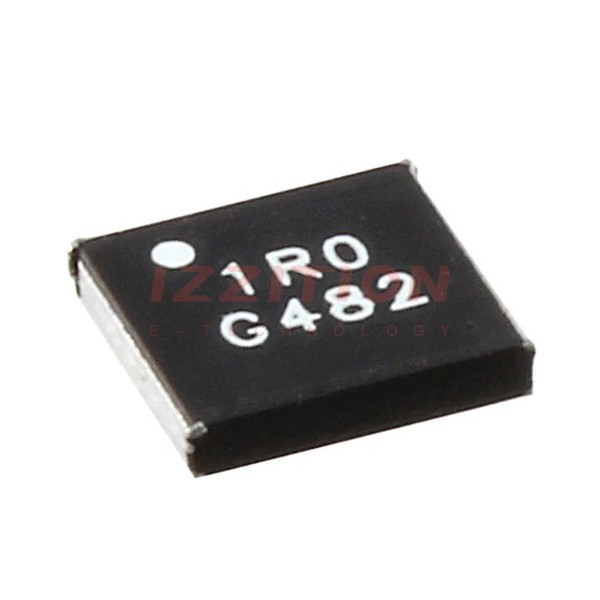

| Part Number | 0410CDMCBDS-1R0MC | 0410CDMCCDS-1R0MC | 0410CDMCBDS-1R2MC | 0410CDMCBDS-1R5MC | 0420CDMCBDS-1R0MC | 0410CDMCBDS-1R8MC | 0412CDMCBDS-1R0MC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Molded | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | Metal | - | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1.2 µH | 1.5 µH | 1 µH | 1.8 µH | 1 µH |
| Tolerance | ±30% | ±20% | ±30% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4 A | 3.7 A | 3.6 A | 3.4 A | 5.5 A | 2.8 A | 4.5 A |
| Current - Saturation (Isat) | 3.2A | 4.1A | 2.6A | 2.5A | 6.8A | 2.4A | 5.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 42mOhm | 56mOhm Max | 49mOhm | 66mOhm | 17mOhm | 75mOhm | 40mOhm |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -55°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | Nonstandard | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD |
| Supplier Device Package | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Size / Dimension | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.177" L x 0.161" W (4.50mm x 4.10mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.079" (2.00mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
