Please send RFQ , we will respond immediately.

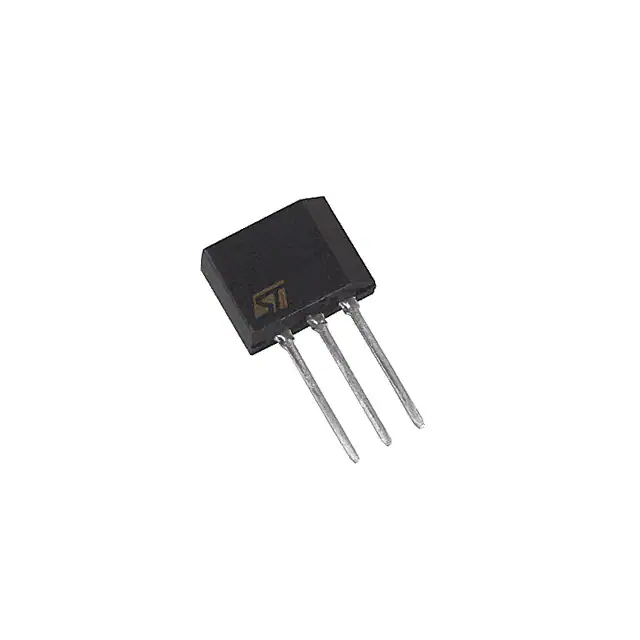

| Part Number | Z0405NF 1AA2 | Z0409NF 1AA2 | Z0405DF 1AA2 | Z0405MF 1AA2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Triac Type | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate |
| Voltage - Off State | 800 V | 800 V | 400 V | 600 V |
| Current - On State (It (RMS)) (Max) | 4 A | 4 A | 4 A | 4 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A | 20A, 21A | 20A, 21A | 20A, 21A |
| Current - Gate Trigger (Igt) (Max) | 5 mA | 10 mA | 5 mA | 5 mA |
| Current - Hold (Ih) (Max) | 5 mA | 10 mA | 5 mA | 5 mA |
| Configuration | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-202 No Tab | TO-202 No Tab | TO-202 No Tab | TO-202 No Tab |
| Supplier Device Package | TO-202-3 | TO-202-3 | TO-202-3 | TO-202-3 |
