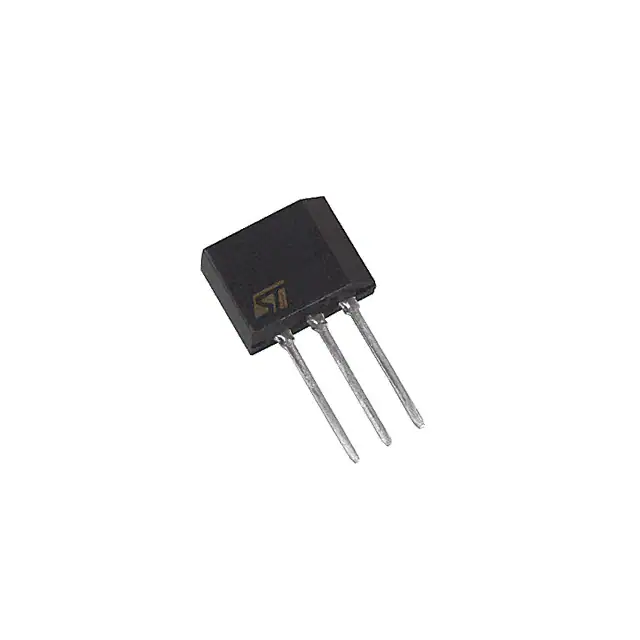

| Part Number | X0405NF 1AA2 | X0402NF 1AA2 | X0403NF 1AA2 | X0405MF 1AA2 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Off State | 800 V | 800 V | 800 V | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV | 800 mV | 800 mV | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 50 µA | 200 µA | 200 µA | 50 µA |
| Voltage - On State (Vtm) (Max) | 1.8 V | 1.8 V | 1.8 V | 1.8 V |
| Current - On State (It (AV)) (Max) | 900 mA | 900 mA | 900 mA | 900 mA |
| Current - On State (It (RMS)) (Max) | 1.35 A | 1.35 A | 1.35 A | 1.35 A |
| Current - Hold (Ih) (Max) | 5 mA | 5 mA | 5 mA | 5 mA |
| Current - Off State (Max) | 5 µA | 5 µA | 5 µA | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A, 33A | 30A, 33A | 30A, 33A | 30A, 33A |
| SCR Type | Sensitive Gate | Sensitive Gate | Sensitive Gate | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-202 No Tab | TO-202 No Tab | TO-202 No Tab | TO-202 No Tab |
| Supplier Device Package | TO-202-3 | TO-202-3 | TO-202-3 | TO-202-3 |
