| Part Number | VNQ5160K-E | VNQ5E160K-E |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 4 | 4 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 4.5V ~ 36V | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 3.8A | 7A |
| Rds On (Typ) | 160mOhm (Max) | 160mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Auto Restart, Status Flag | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

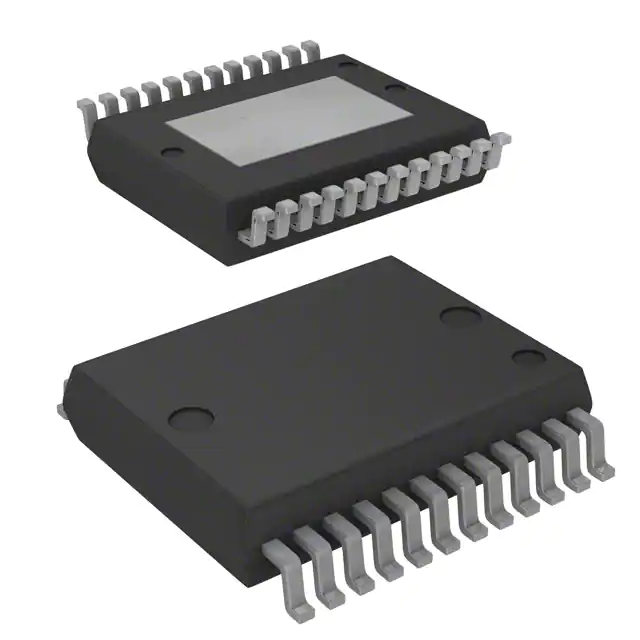

| Supplier Device Package | PowerSSO-24 | PowerSSO-24 |
| Package / Case | 24-PowerBSOP (0.295", 7.50mm Width) | 24-PowerBSOP (0.295", 7.50mm Width) |
