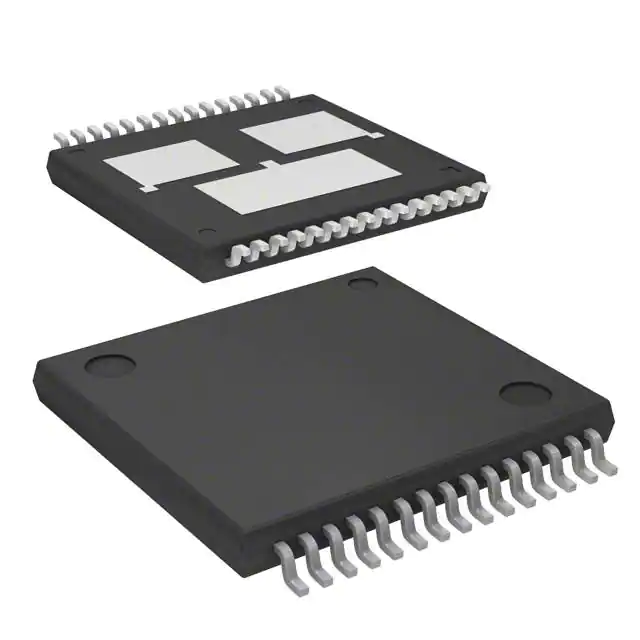

| Part Number | VNH3SP30TR-E | VNH2SP30TR-E | VNH3ASP30TR-E |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Interface | Parallel, PWM | PWM | PWM |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - |
| Applications | Automotive | Automotive | Automotive |
| Current - Output | 30A | 30A | 30A |
| Voltage - Supply | 5.5V ~ 36V | 5.5V ~ 16V | 5.5V ~ 16V |
| Voltage - Load | 5.5V ~ 36V | 5.5V ~ 16V | 5.5V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-MPSO, MultiPowerSO | 30-MPSO, MultiPowerSO | 30-MPSO, MultiPowerSO |
| Supplier Device Package | MultiPowerSO-30 | MultiPowerSO-30 | MultiPowerSO-30 |
