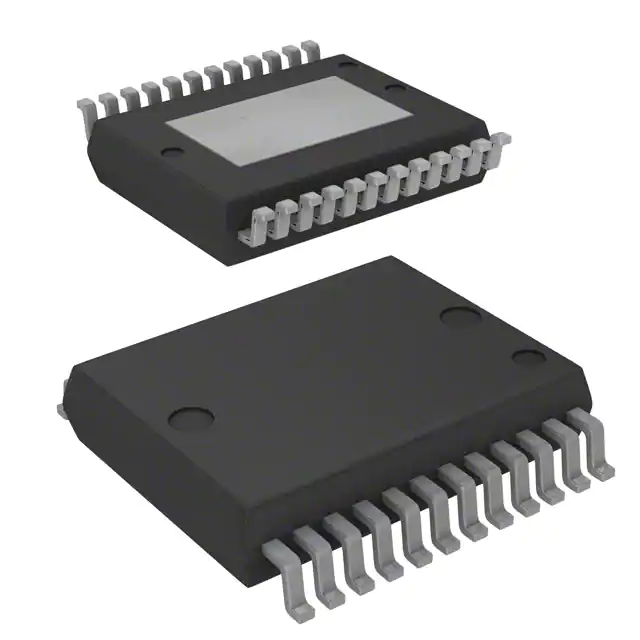

| Part Number | VND5E025AKTR-E | VND5E025BKTR-E | VND5E025MKTR-E | VND5E025AYTR-E | VND5E025LKTR-E | VND5E025ASTR-E | VND5025AKTR-E |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 43A | 43A | 43A | 33A | 30A | 43A | 29A |
| Rds On (Typ) | 25mOhm (Max) | 25mOhm (Max) | 25mOhm (Max) | 25mOhm | 25mOhm (Max) | 25mOhm | 25mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Auto Restart | Auto Restart | Auto Restart | Auto Restart | Auto Restart | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PowerSSO-24™ | PowerSSO-24 | PowerSSO-24 | PowerSSO-36 | PowerSSO-24 | 16-SO | PowerSSO-24 |
| Package / Case | 24-SOP (0.295", 7.50mm Width) Exposed Pad | 24-PowerBSOP (0.295", 7.50mm Width) | 24-PowerBSOP (0.295", 7.50mm Width) | 36-PowerFSOP (0.295", 7.50mm Width) | 24-PowerBSOP (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 24-PowerBSOP (0.295", 7.50mm Width) |
