| Part Number | VND5004BSP30TR-E | VND5004CSP30TR-E | VND5004DSP30TR-E | VND5004ASP30TR-E |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 4.5V ~ 28V | 4.5V ~ 27V | 4.5V ~ 28V | 4.5V ~ 27V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 70A | 70A | 70A | 70A |
| Rds On (Typ) | 4mOhm (Max) | 4mOhm (Max) | 4mOhm (Max) | 4mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Auto Restart | Auto Restart | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

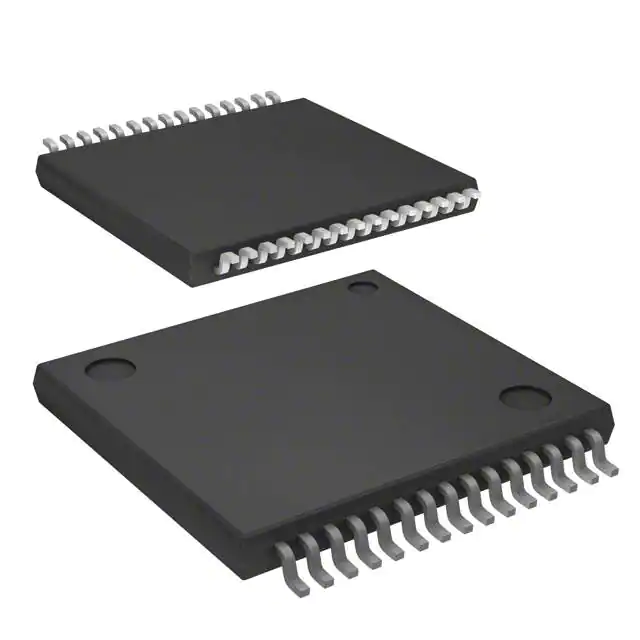

| Supplier Device Package | MultiPowerSO-30 | MultiPowerSO-30 | MultiPowerSO-30 | MultiPowerSO-30 |
| Package / Case | 30-PowerSOP (0.630", 16.00mm Width) | 30-PowerSOP (0.630", 16.00mm Width) | 30-PowerSOP (0.630", 16.00mm Width) | 30-PowerSOP (0.630", 16.00mm Width) |
