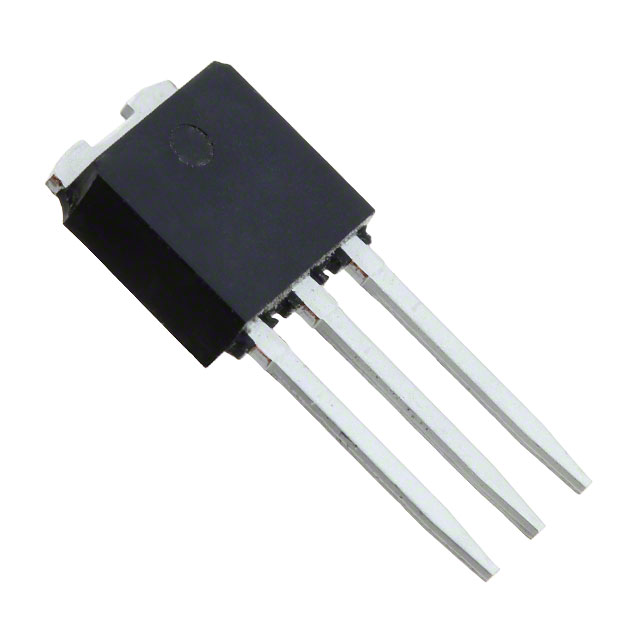

| Part Number | VND3NV04-1-E | VND1NV04-1-E |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 36V (Max) | 36V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 3.5A | 1.7A |
| Rds On (Typ) | 120mOhm (Max) | 250mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting |
| Features | - | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount |
| Supplier Device Package | I-PAK | DPAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-252-3, DPak (2 Leads + Tab), SC-63 |
