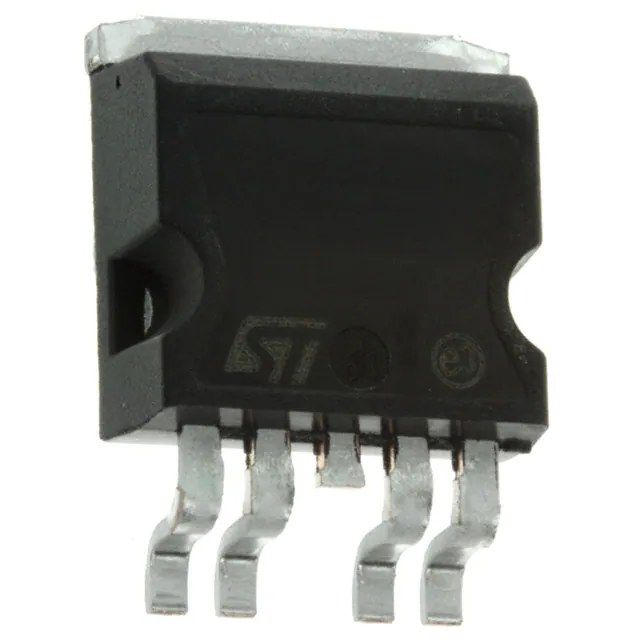

| Part Number | VN920D-B5 | VN920-B5 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 5.5V ~ 36V | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 30A | 30A |
| Rds On (Typ) | 18mOhm (Max) | 16mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Auto Restart | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | P2PAK | P2PAK |
| Package / Case | P²PAK (4 Leads + Tab) | P²PAK (4 Leads + Tab) |
