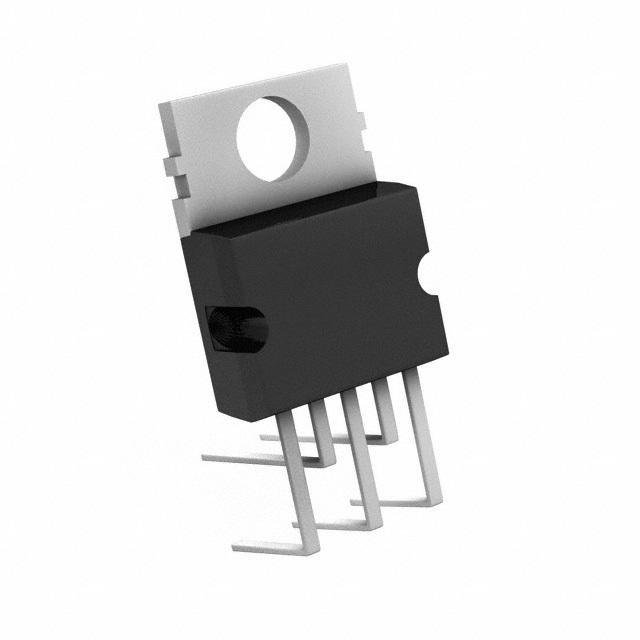

| Part Number | VN03(011Y) | VN06(011Y) | VN03(012Y) |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 5.5V ~ 26V | 5.5V ~ 26V | 5.5V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 4A | 9A | 4A |
| Rds On (Typ) | 500mOhm (Max) | 180mOhm | 500mOhm (Max) |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 5-PENTAWATT | 5-PENTAWATT | 5-PENTAWATT |
| Package / Case | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | Pentawatt-5 (Straight Leads, Staggered Depth) |
