| Part Number | VIPER25HD | VIPER35HD | VIPER25HN | VIPER25LD | VIPER26HD | VIPER28HD | VIPER27HD | VIPER15HD |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Either | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V | 800V | 800V | 800V | 800V | 800V |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 14 V | 14 V | 14 V | 14 V | 13 V | 14 V | 14 V | 14 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 23.5V | 8.5V ~ 23.5V | 8.5V ~ 23.5V | 8.5V ~ 23.5V | 11.5V ~ 23.5V | 8.5V ~ 23.5V | 8.5V ~ 23.5V | 8.5V ~ 23.5V |
| Duty Cycle | - | - | - | - | 70% | 80% | 80% | - |
| Frequency - Switching | 225kHz | 225kHz | 225kHz | 136kHz | 115kHz | 115kHz | 115kHz | 225kHz |
| Power (Watts) | 20 W | 22 W | 20 W | 20 W | 20 W | 16 W | 20 W | 10 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |

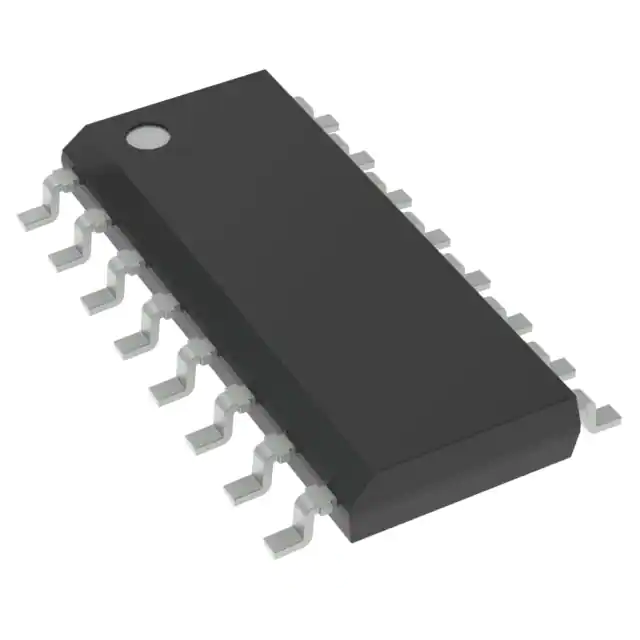

| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm), 7 Leads | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO | 16-SO | 7-DIP | 16-SO | 16-SO | 16-SO | 16-SO | 16-SO |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
