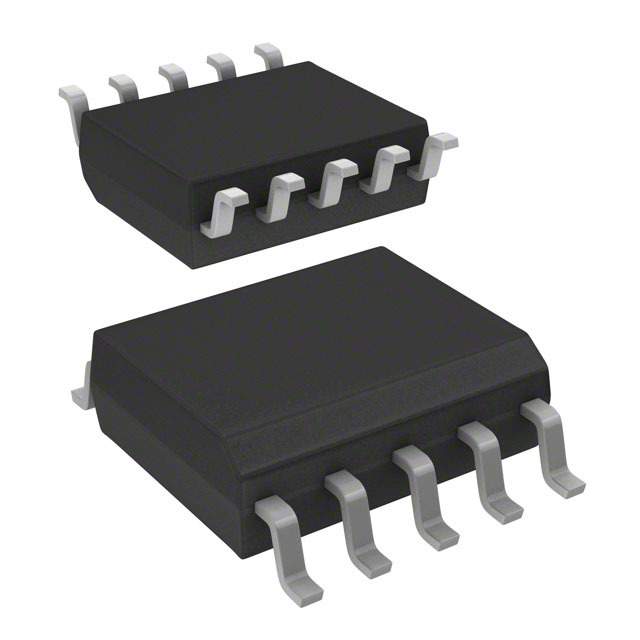

| Part Number | VIPER06XS | VIPER06HS | VIPER06LS | VIPER06XN |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Output Isolation | Either | Either | Either | Either |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V | 800V |
| Topology | Buck, Flyback | Buck, Flyback | Buck, Flyback | Buck, Flyback |
| Voltage - Start Up | 13 V | 13 V | 13 V | 13 V |
| Voltage - Supply (Vcc/Vdd) | 11.5V ~ 23.5V | 11.5V ~ 23.5V | 11.5V ~ 23.5V | 11.5V ~ 23.5V |
| Duty Cycle | 70% | 70% | 70% | 70% |
| Frequency - Switching | 30kHz | 115kHz | 60kHz | 30kHz |
| Power (Watts) | 8 W | 8 W | 8 W | 8 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature | Current Limiting, Open Loop, Over Temperature | Current Limiting, Open Loop, Over Temperature | Current Limiting, Open Loop, Over Temperature |
| Control Features | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 10-SSOP | 10-SSOP | 10-SSOP | 7-DIP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole |
