Please send RFQ , we will respond immediately.
| Part Number | VIPER012HSTR | VIPER012XSTR | VIPER012LSTR | VIPER013HSTR | VIPER012BHSTR |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Output Isolation | Either | Either | Either | Either | Either |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V | 800V | 800V |
| Topology | Buck, Buck-Boost, Flyback | Buck, Buck-Boost, Flyback | Buck, Buck-Boost, Flyback | Buck, Buck-Boost, Flyback | Buck, Boost, Buck-Boost, Flyback |
| Voltage - Start Up | 8 V | 8 V | 8 V | 8 V | 8 V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V |
| Duty Cycle | 80% | 80% | 80% | 80% | 80% |
| Frequency - Switching | 120kHz | 30kHz | 60kHz | 120kHz | 120kHz |
| Power (Watts) | 7 W | 7 W | 7 W | 7 W | 8 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - | - | - | - | EN, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |

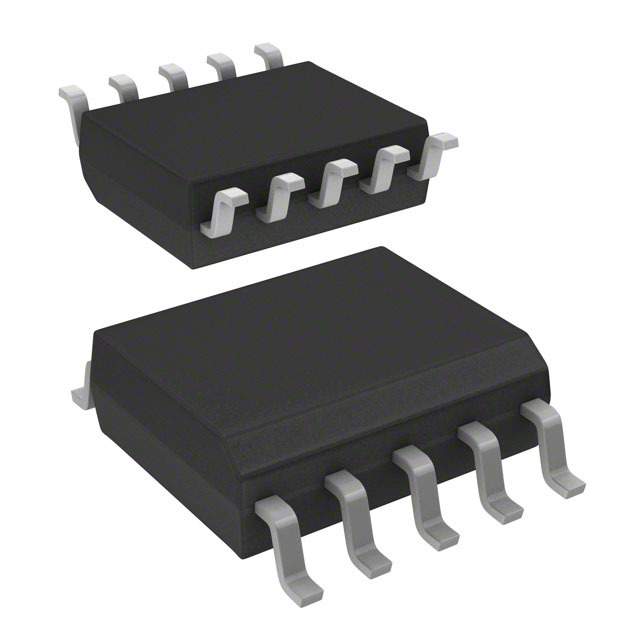

| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP | 10-SSOP | 10-SSOP | 10-SSOP | 10-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
