| Part Number | TYN1212RG | TYN1012RG |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Voltage - Off State | 1.2 kV | 1 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V | 1.6 V |
| Current - On State (It (AV)) (Max) | - | 8 A |
| Current - On State (It (RMS)) (Max) | 12 A | 12 A |
| Current - Hold (Ih) (Max) | 30 mA | 30 mA |
| Current - Off State (Max) | 10 µA | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A @ 50Hz | 140A, 145A |
| SCR Type | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole |

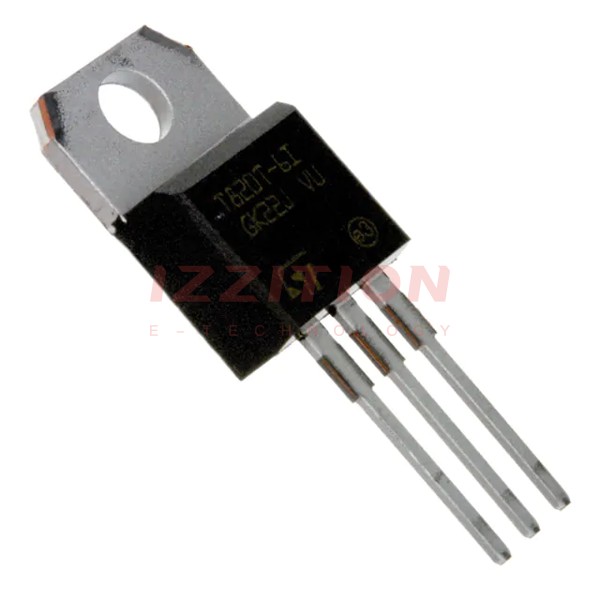

| Package / Case | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB | TO-220 |
