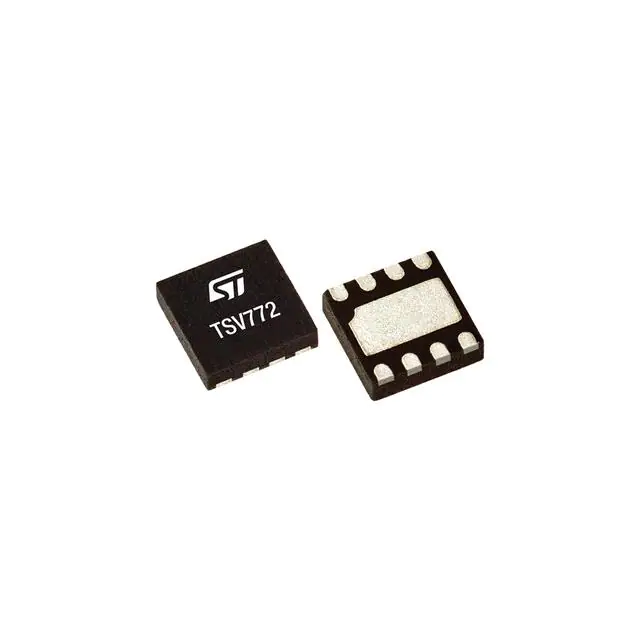

| Part Number | TSV772IQ2T | TSV792IQ2T | TSV712IQ2T | TSV732IQ2T | TSV7722IQ2T |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | CMOS | CMOS | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 13V/µs | 30V/µs | 0.06V/µs | 0.35V/µs | 11V/µs |
| Gain Bandwidth Product | 20 MHz | 50 MHz | 150 kHz | 900 kHz | 22 MHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 2 pA | 2 pA | 1 pA | 1 pA | 2 pA |
| Voltage - Input Offset | 200 µV | 200 µV | 200 µV | 200 µV | 50 µV |
| Current - Supply | 1.9mA (x2 Channels) | 5.5mA (x2 Channels) | 10µA (x2 Channels) | 58µA (x2 Channels) | 1.7mA (x2 Channels) |
| Current - Output / Channel | 65 mA | 70 mA | 56 mA | 68 mA | 70 mA |
| Voltage - Supply Span (Min) | - | 2.2 V | 1.5 V | 1.5 V | 1.8 V |
| Voltage - Supply Span (Max) | - | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad | 8-UFDFN Exposed Pad | 8-WFDFN | 8-WFDFN | 8-UFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) |
