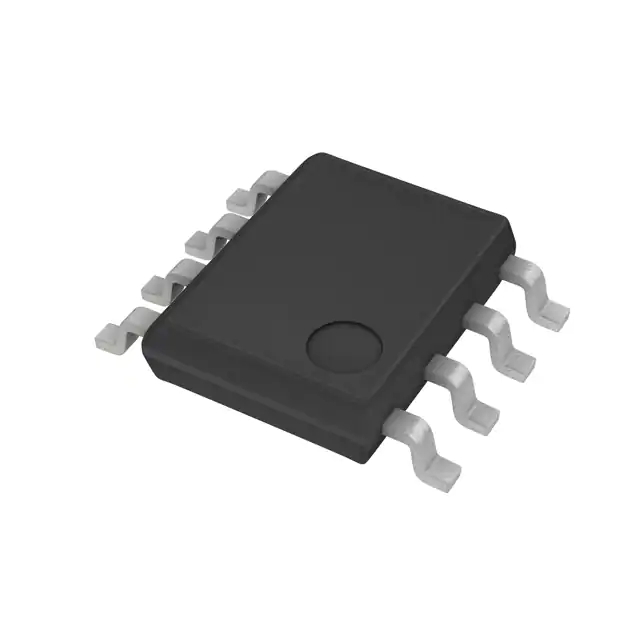

| Part Number | TSM1014IST | TSM1011IST | TSM1012IST | TSM1013IST | TSM1014AIST | TSM1014IDT |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Reference Type | Series | Series | Series | Series | Series | Series |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 1.25V | 2.545V | 1.25V | 2.5V | 1.25V | 1.25V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Current - Output | 2.5 mA | 1 mA | 2.5 mA | 1 mA | 2.5 mA | 2.5 mA |
| Tolerance | ±1% | ±0.5% | ±1% | ±1% | ±0.5% | ±1% |
| Temperature Coefficient | - | - | - | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - |
| Voltage - Input | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V |
| Current - Supply | 50mA | 50mA | 50mA | 50mA | 50mA | 50mA |
| Current - Cathode | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-MiniSO | 8-MiniSO | 8-MiniSO | 8-MiniSO | 8-MiniSO | 8-SOIC |
