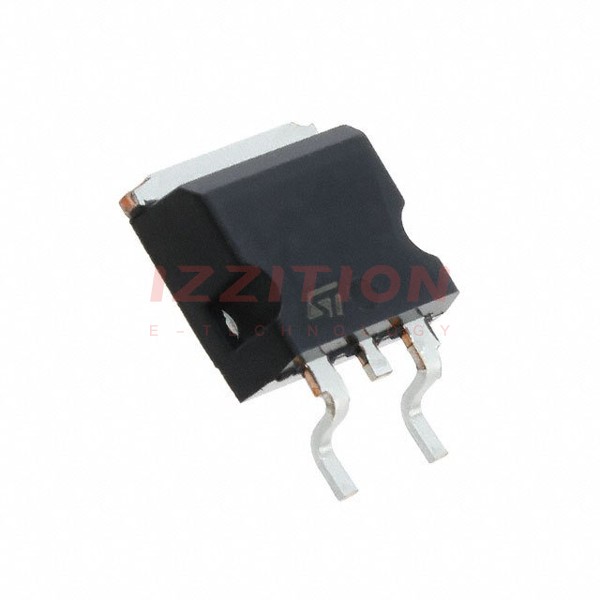

| Part Number | TN5015H-6G-TR | TN4015H-6G-TR |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Voltage - Off State | 600 V | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.65 V | 1.6 V |
| Current - On State (It (AV)) (Max) | 30 A | 25 A |
| Current - On State (It (RMS)) (Max) | 50 A | 40 A |
| Current - Hold (Ih) (Max) | 60 mA | 60 mA |
| Current - Off State (Max) | 10 µA | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 493A, 450A | 394A, 360A |
| SCR Type | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) | D²PAK (TO-263) |
