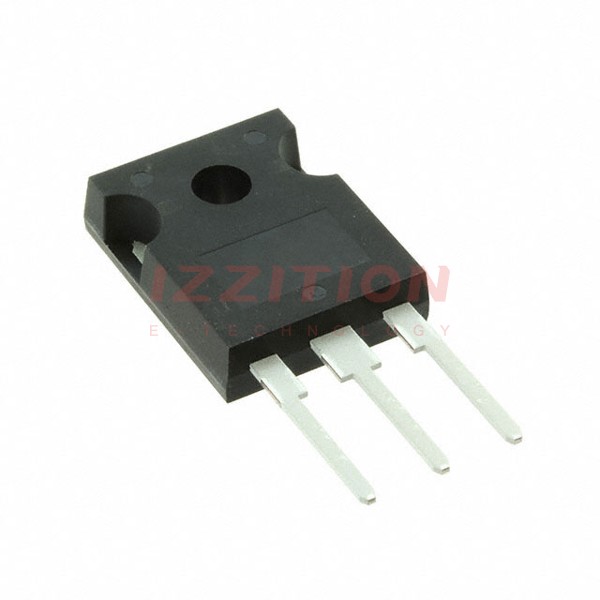

| Part Number | TN4050HP-12WY | TN6050HP-12WY |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active |
| Voltage - Off State | 1.2 kV | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 50 mA |
| Voltage - On State (Vtm) (Max) | 1.55 V | 1.5 V |
| Current - On State (It (AV)) (Max) | 25 A | 38 A |
| Current - On State (It (RMS)) (Max) | 40 A | 60 A |
| Current - Hold (Ih) (Max) | 100 mA | 100 mA |
| Current - Off State (Max) | 5 µA | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 440A | 600A, 660A |
| SCR Type | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | TO-247-3 |
