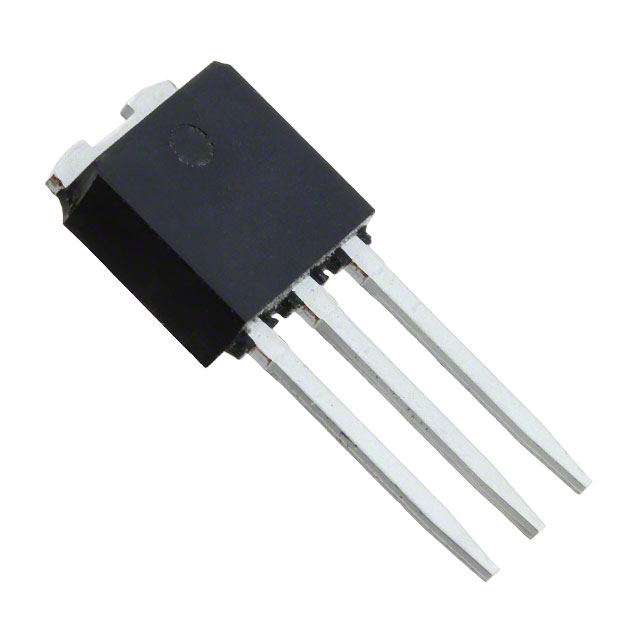

| Part Number | TN1215-600H | TN1215-800H | TN1215-600B | TN1215-600G |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active |
| Voltage - Off State | 600 V | 800 V | 600 V | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA | 15 mA | 15 mA | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V | 1.6 V | 1.6 V | 1.6 V |
| Current - On State (It (AV)) (Max) | 8 A | 8 A | 8 A | 8 A |
| Current - On State (It (RMS)) (Max) | 12 A | 12 A | 12 A | 12 A |
| Current - Hold (Ih) (Max) | 40 mA | 40 mA | 40 mA | 30 mA |
| Current - Off State (Max) | 5 µA | 5 µA | 5 µA | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 110A, 115A | 110A, 115A | 110A, 115A | 140A, 145A |
| SCR Type | Standard Recovery | Standard Recovery | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-251-3 Short Leads, IPak, TO-251AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-251 (IPAK) | IPAK (TO-251) | DPAK | D2PAK |
