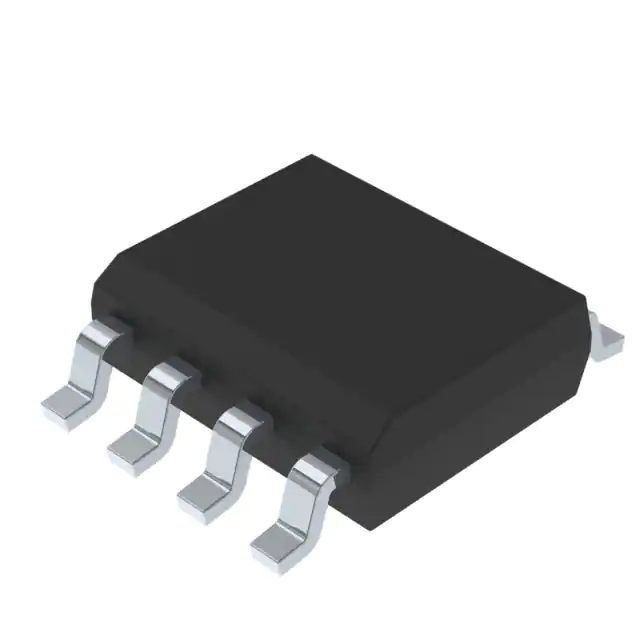

| Part Number | TL431IDT | TL431IZT | TL431IYDT | TL431CDT | TL431ICT | TL431ID | TL431IDG | TL431IDM | TL431IDR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | Texas Instruments | onsemi | Microsemi Corporation | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Reference Type | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V | 2.495V | 2.495V | 2.495V | 2.495V | 2.495V | 2.495V | 2.5V | 2.495V |
| Voltage - Output (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Current - Output | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Tolerance | ±2.21% | ±2.21% | ±2.21% | ±2.21% | ±2.21% | ±2.2% | ±2.2% | ±2% | ±2.2% |
| Temperature Coefficient | - | - | - | - | - | - | 50ppm/°C Typical | 30ppm/°C Typical | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - | - | - | - |
| Voltage - Input | - | - | - | - | - | - | - | - | - |
| Current - Supply | - | - | - | - | - | - | - | - | - |
| Current - Cathode | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | TO-226-2, TO-92-2 (TO-226AC) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 6-TSSOP, SC-88, SOT-363 | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | TO-92-3 | 8-SOIC | 8-SOIC | SOT-323-6L | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
