Please send RFQ , we will respond immediately.

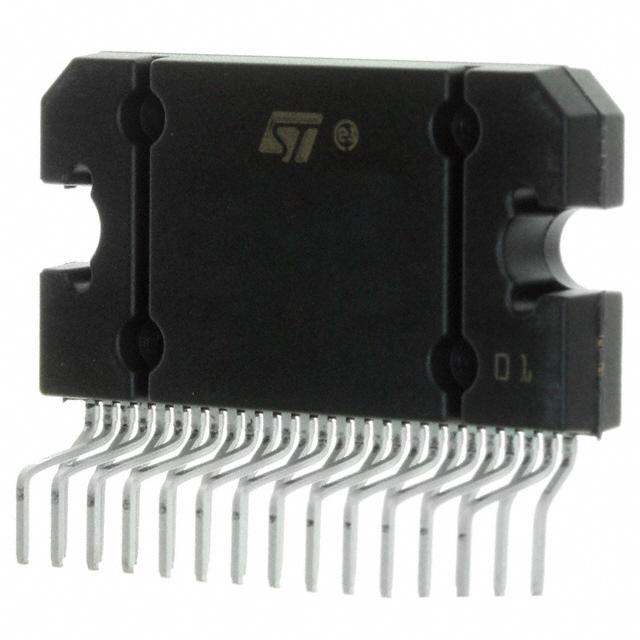

| Part Number | TDA7563B | TDA7564B | TDA7563BH | TDA7562B | TDA7563 | TDA7563A |
|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Type | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB |
| Output Type | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 75W x 4 @ 2Ohm | 75W x 4 @ 2Ohm | 75W x 4 @ 2Ohm | 60W x 4 @ 2Ohm | 72W x 4 @ 2Ohm | 75W x 4 @ 2Ohm |
| Voltage - Supply | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V | 8V ~ 18V |
| Features | I²C, Mute, Short-Circuit and Thermal Protection, Standby | I²C, Mute, Short-Circuit and Thermal Protection, Standby | I²C, Mute, Short-Circuit and Thermal Protection, Standby | I²C, Mute, Short-Circuit and Thermal Protection, Standby | I²C, Mute, Short-Circuit and Thermal Protection, Standby | I²C, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 105°C (TA) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 27-Flexiwatt (Vertical) | 25-Flexiwatt (Vertical) | 27-Flexiwatt (Horizontal) | 27-Flexiwatt (Vertical) | 27-Flexiwatt (Vertical) | 27-Flexiwatt (Vertical) |
| Package / Case | 27-Flexiwatt (Formed Leads) | 25-Flexiwatt (Formed Leads) | 27-Flexiwatt (Formed Leads) | 27-Flexiwatt (Formed Leads) | 27-Flexiwatt (Formed Leads) | 27-Flexiwatt (Formed Leads) |
