Please send RFQ , we will respond immediately.
| Part Number | TDA7297 | TDA7297D | TDA7299 | TDA7267 | TDA7292 | TDA7295 | TDA7296 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Type | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) | 2-Channel (Stereo) | 1-Channel (Mono) | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 15W x 2 @ 8Ohm | 10W x 2 @ 8Ohm | 2W x 1 @ 8Ohm | 2W x 1 @ 8Ohm | 40W x 2 @ 8Ohm | 80W x 1 @ 8Ohm | 60W x 1 @ 8Ohm |
| Voltage - Supply | 6.5V ~ 18V | 6.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 16V ~ 66V, ±8V ~ 33V | ±10V ~ 40V | ±10V ~ 35V |
| Features | Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby | Depop, Short-Circuit and Thermal Protection, Standby | Depop, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Supplier Device Package | 15-Multiwatt | PowerSO-20 | 8-SOIC | 8-Mini DIP | 11-Multiwatt | 15-Multiwatt | 15-Multiwatt |

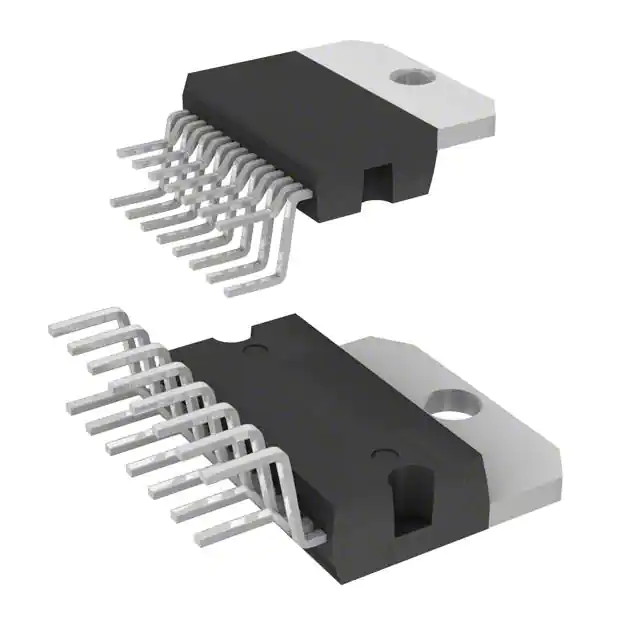

| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | Multiwatt-11 (Vertical, Bent and Staggered Leads) | Multiwatt-15 (Vertical, Bent and Staggered Leads) | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
