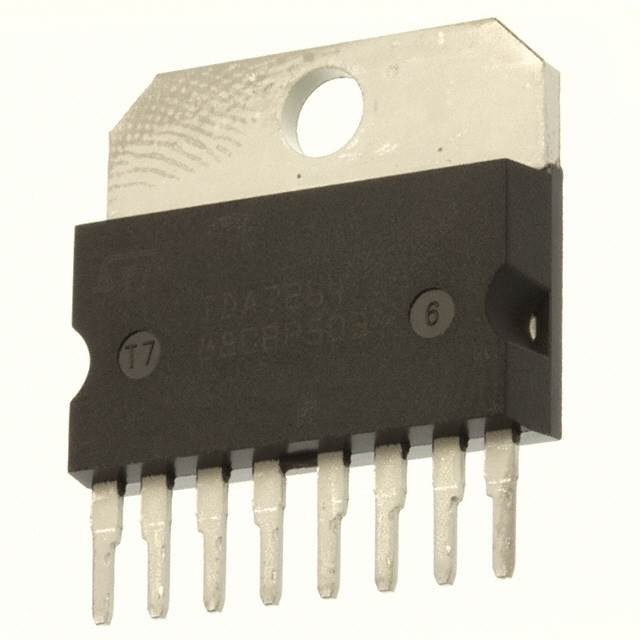

| Part Number | TDA7261 | TDA7265 | TDA7266 | TDA7264 | TDA7263 | TDA7267 | TDA7268 | TDA7262 | TDA7269 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB | Class AB |
| Output Type | 1-Channel (Mono) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) | 1-Channel (Mono) | 2-Channel (Stereo) | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 32W x 1 @ 8Ohm | 25W x 2 @ 8Ohm | 7W x 2 @ 8Ohm | 25W x 2 @ 4Ohm | 12W x 2 @ 8Ohm | 2W x 1 @ 8Ohm | 2W x 2 @ 8Ohm | 28W x 2 @ 4Ohm | 10W x 2 @ 8Ohm |
| Voltage - Supply | 10V ~ 45V, ±5V ~ 22.5V | ±5V ~ 25V | 3V ~ 18V | ±5V ~ 22.5V | 10V ~ 30V | 4.5V ~ 18V | 4.5V ~ 18V | 8V ~ 32V | ±5V ~ 20V |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Mute, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection | Depop, Short-Circuit and Thermal Protection, Standby | Depop, Short-Circuit and Thermal Protection, Standby | Short-Circuit and Thermal Protection, Standby | Depop, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) | -20°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 150°C (TJ) | 0°C ~ 70°C (TA) |
| Supplier Device Package | 8-Multiwatt | 11-Multiwatt | 15-Multiwatt | 8-Multiwatt | 11-Clipwatt | 8-Mini DIP | 16-PowerDIP | 11-Multiwatt | 11-Multiwatt |
| Package / Case | Multiwatt-8 (Straight Leads) | Multiwatt-11 (Vertical, Bent and Staggered Leads) | Multiwatt-15 (Vertical, Bent and Staggered Leads) | Multiwatt-8 (Straight Leads) | Clipwatt-11 (Vertical, Bent and Staggered Leads) | 8-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | Multiwatt-11 (Vertical, Bent and Staggered Leads) | Multiwatt-11 (Vertical, Bent and Staggered Leads) |
